RM Italy KL703
RM Italy KL703 President Mckinley President Mckinley President Mckinley President Mckinley President Mckinley


RM Italy KL703
10 Meter Amplifier
$489.99
In Stock

Ships within 2 - 5 days

Features

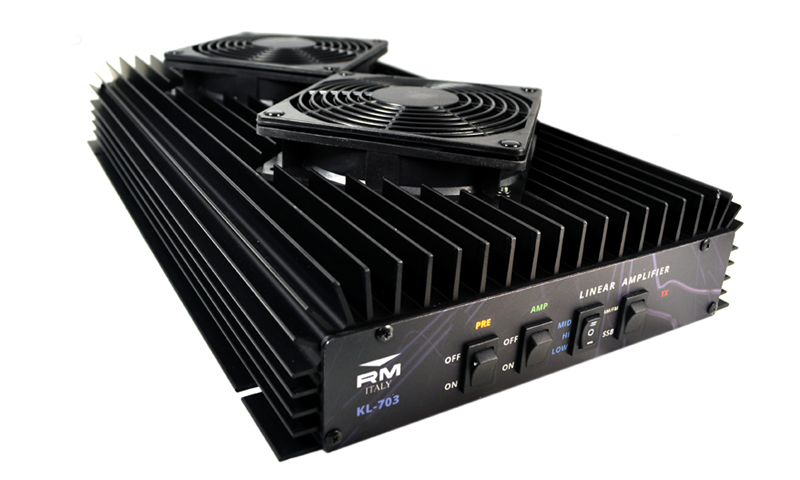

The KL703 is a new 500W linear Amplifer for use between 25 and 30 MHz, (developed for the 10m amateur radio band). It can be used for all types of narrow band modulation, (SSB, CW, AM, FM and Data). It is particularly suitable for portable / in-car operation as it requires a power supply voltage of 13.8 Vdc. The KL703 requires around 30W for maximum output power. The harmonic output is better than -55 dB. The KL703 also features an RX preamp that can be used to increase the readability of weak signals.

  • Operating frequency: 25-30MHz
  • Modes: SSB, CW, AM, FM, DATA
  • 36 - 50 Amp Draw

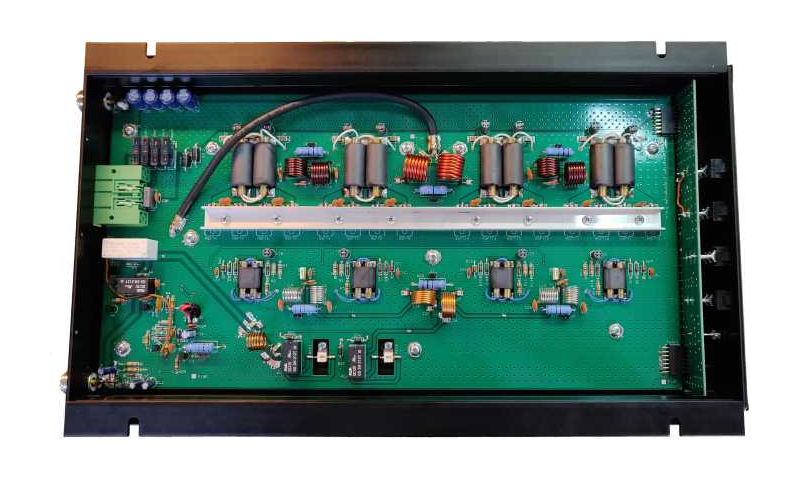

  • 16x RM3 MOSFET Transistors
  • 1-35 Watt Max Input Power
  • 500 Watt Max Output
  • These amps DO NOT Come With Hook Up Wire, or a Fuse-able link. You must supply it.

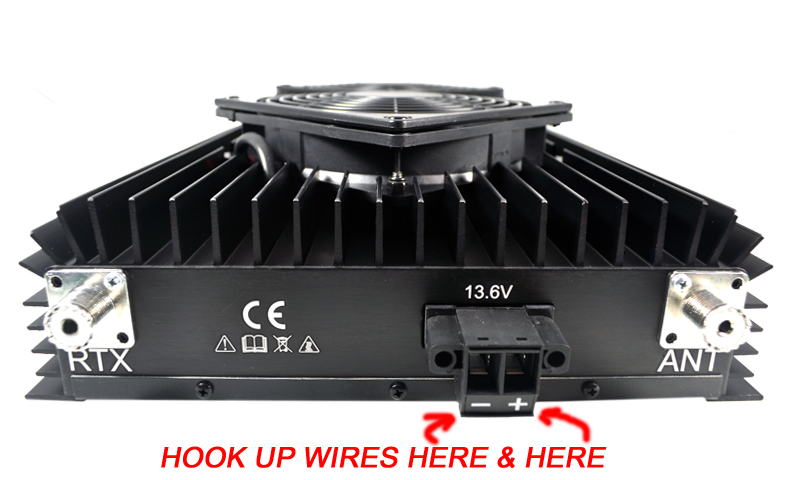

  • Wire Hook Up's Are Screw On Type. Loosen Screws, Insert Wire, Tighten Screws, And Your Ready To Go





There is absolutely no warranty applied or given on these items. No factory support either.

These units are for industrial, scientific, medical, or export use only. It is a violation of US FCC regulations to operate these units on the Citizens Band or Amateur Radio Services in the United States. Please check regulations in your country before operating these unit.
